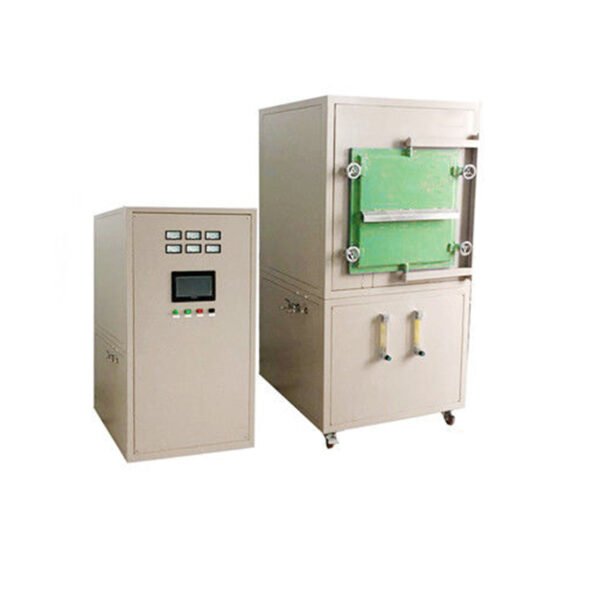

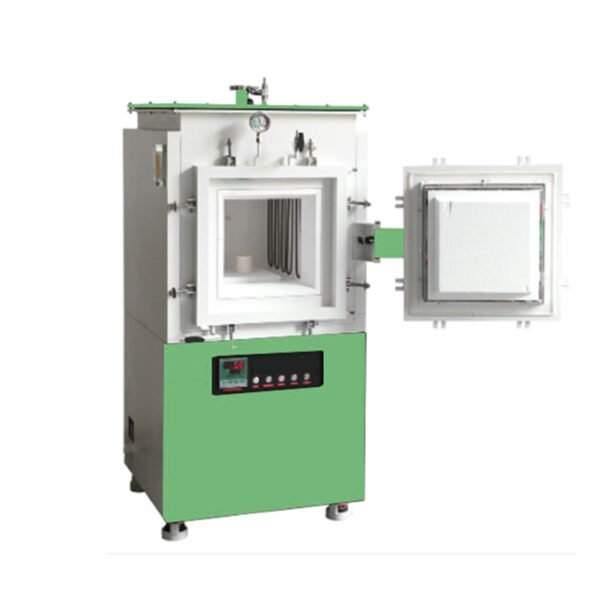

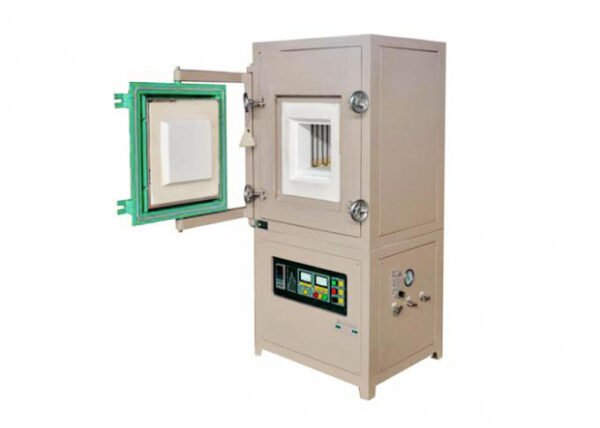

High quality Atmosphere Controlled Muffle Furnace
For any inquiry, please send to this email: sales@gensitherm.com
This Atmosphere Controlled Muffle Furnace is an economic atmosphere-controlled muffle furnace that is designed for sintering materials under inert gas or vacuum up to 1700oC. The furnace consists of high-quality alumina fiber bricks and MoSi2 heating elements
Product Description
This Atmosphere Controlled Muffle Furnace is an economic atmosphere-controlled muffle furnace that is designed for sintering materials under inert gas or vacuum up to 1700oC. The furnace consists of high-quality alumina fiber bricks and MoSi2 heating elements with a heating chamber of 16″x 16″ x 20″.
This controlled atmosphere furnaces feature a chamber with high quality alumina fiber insulation and MoSi2 heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by 24-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Applications
Heat treatment of metals for enhanced hardness and durability.
Sintering of ceramics to achieve desired shapes and properties.
Annealing to relieve internal stresses and improve ductility.
Oxidation and reduction processes for specific material modifications.
Calcination of various substances for purification and chemical changes.
SPECIFICATIONS
| Furnace structure | MoSi2 heating elements with Ni-coated copper capable connection
Single-layer steel case to reduce cost Water cooling front door and air cooling shell Built-in pressure gauge, vacuum valves, and one gas float meter |
| Heating Chamber | Heated chamber: 410 mm x 410 x 500 mm ( ~16x16x20 inch), 80 Liter
Energy-saving 1800-grade fibrous alumina insulation High-purity Al2O3 coating One Al2O3 fibrous door block is included to block heat radiation. Max. Loading: 100 Kg |
| Gas flowing and Vacuum | KF 25 port and vacuum gauge are built-in for connecting the vacuum pump
Vacuum pump is optional Vacuum level: 10-1 torr in a cold state 1/4″ gas inlet and outlet valves are included for gas flow One direct read gas flowmeter ( 0 – 12L/minute) is included for gas-flowing The digital mass flowmeter ( 0-10L/minute) is available upon request at an extra cost |
| Water Cooling | Water cooling is required for cooling the front door to protect the sealed O-ring
A 58L/min recirculating water cooling is available to cool at an extra cost. |
| Power | AC 480VAC, three-phase (50/ 60 Hz)
26 KW Other working voltage, such as 208-240 and 380-420VAC, 3 phase, is also available. |
| Heaing Elements and Working Temperature | 8 sets of MoSi2 heating elements are built-in and replaceable
Working temperature range: 1200ºC – 1700ºC, which is depend on gas atmosphere In air or O2 Max. 1700 ºC N2 + 5% H2 Max. 1550 ºC ( suggested to remove oxidation better ) In inert gas: Max. 1500 ºC Under vacuum: Max. 1400 ºC |
| Temperature Control | controller included for +/- 0.1oC accuracy connected to PC
24 segments programmable Protection for over-temperature and current, as well as the thermal couple, broke A secondary temperature controller is built-in for extra over-temperature protection. Thermocouple: two B-type PC port: RS 485 port and software are installed for PC operation |
| Overall Dimensions | Overall: 650 L x750 W x1500 H mm ( 26″x 30″ x 59″ ) |
| Shipping Dimensions | 48″L x 40″W x 80″H |
| Warranty | One-year limited warranty with lifetime support. (The warranty does not cover consumable parts such as sample plates and heating elements. |
